Common bar production line


Common bar production line

2018/04/20 18:19
  The products are common Bar and rod of Φ8-Φ32mm. Steel grade: General carbon steel, high quality carbon steel, low alloy steel etc., billet size is 150×150×6000mm, and the weight of the products are 1 ton. The maximum rolling speed is 16m/s and the maximum annual output is 500,000 tons with the double strand rolling.

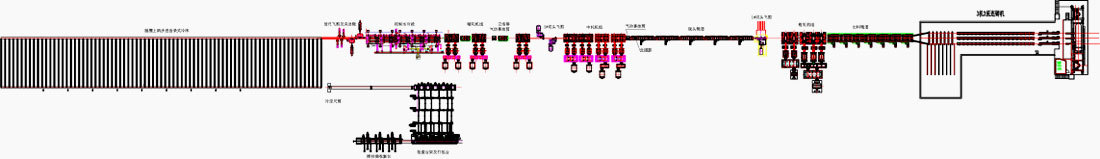

The characteristic of this line is double strand rolling. The main equipment of these are horizontal two high openable housing mill of 550-350 size (or using three high mill stand for break- down).  pusher, discharger, disk type crop flying shear, disk type dividing flying shear, water cooling box, walking rack cooling bed with running slots, cold dividing shear, finishing equipment, tying & collection machine etc.

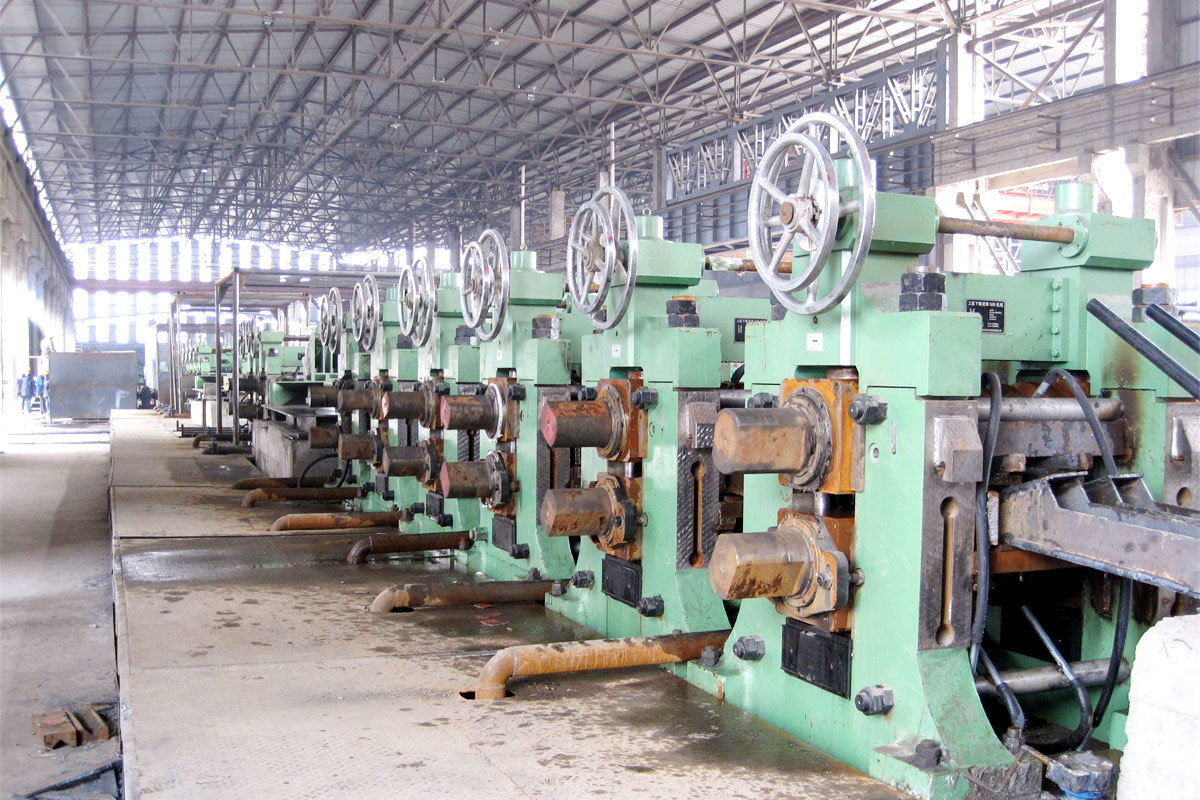

  • Tandem rolling mills for steel bar

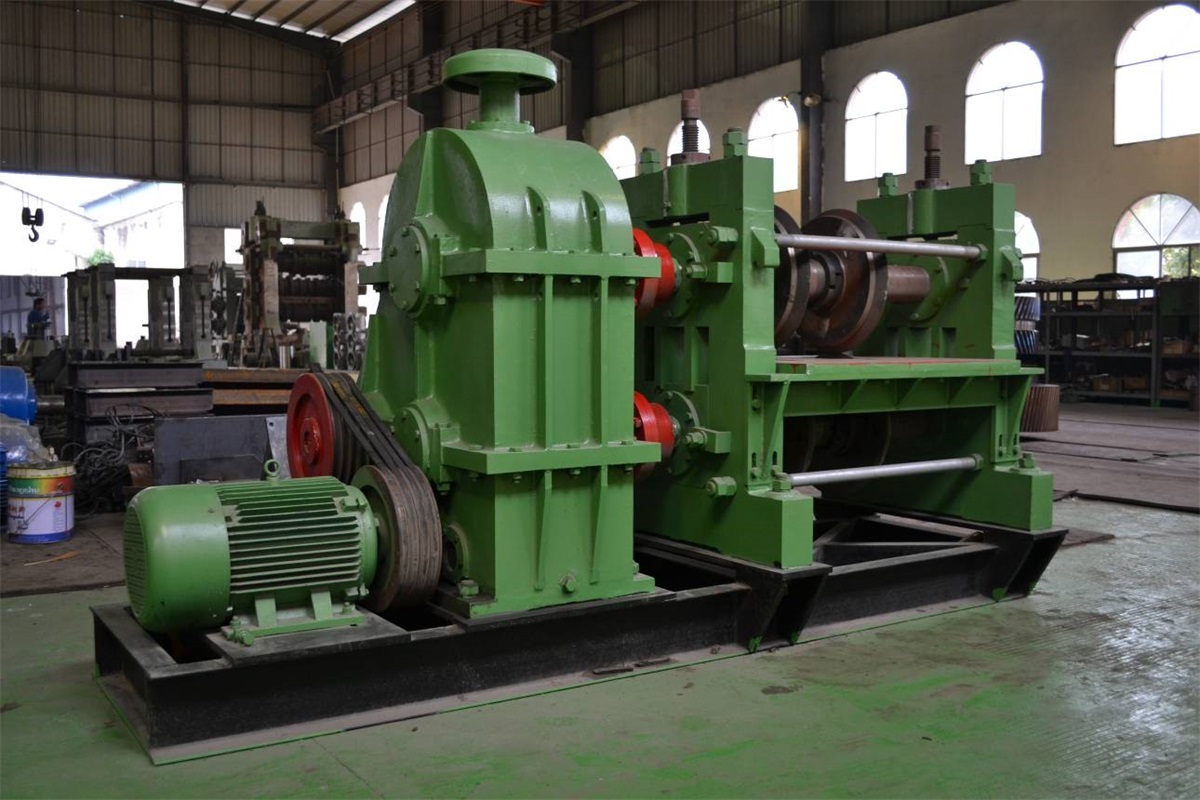

  • Disc crop flying shear

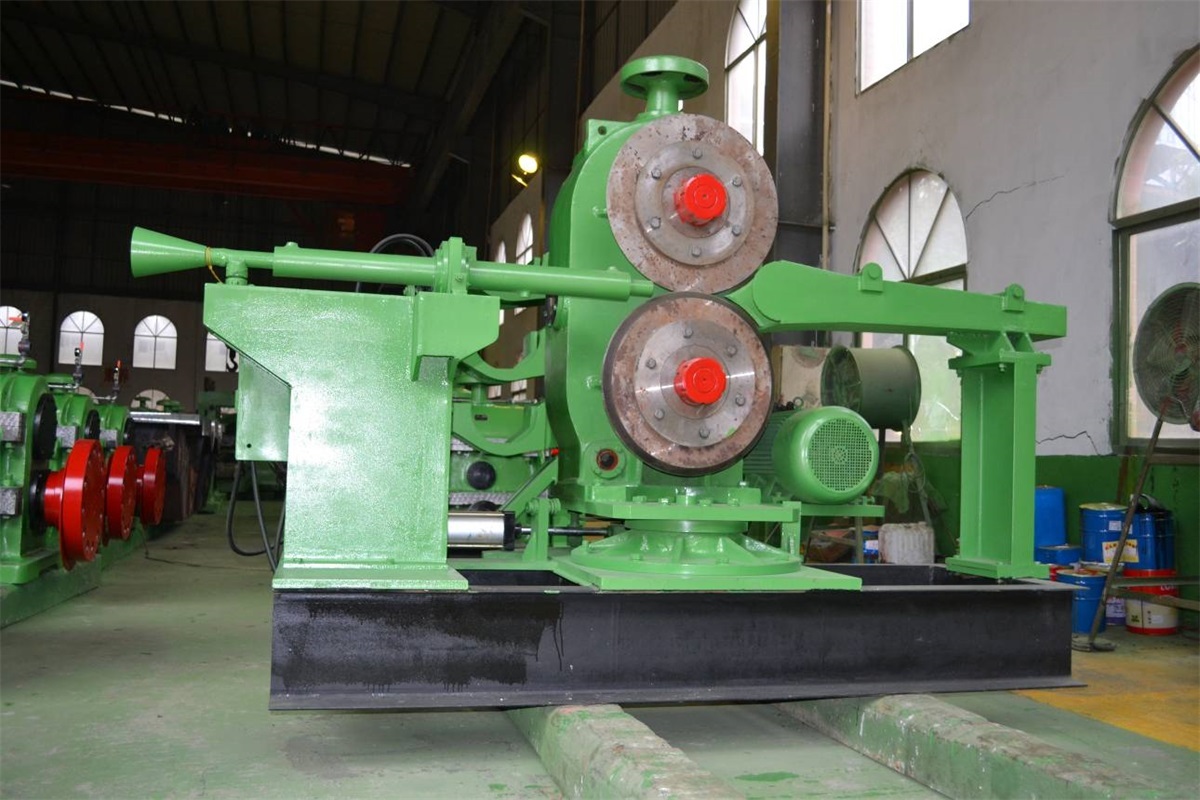

  • Disc dividing flying shear

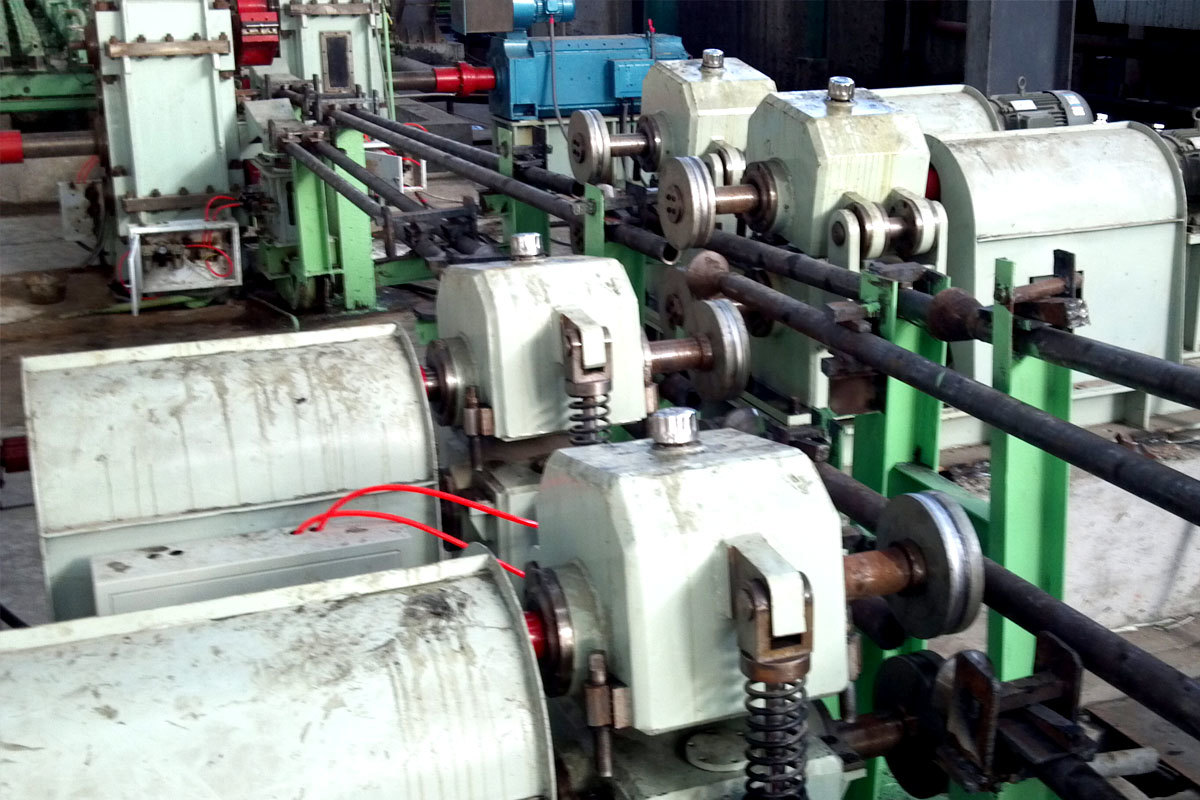

  • Pinch rollers for four strands

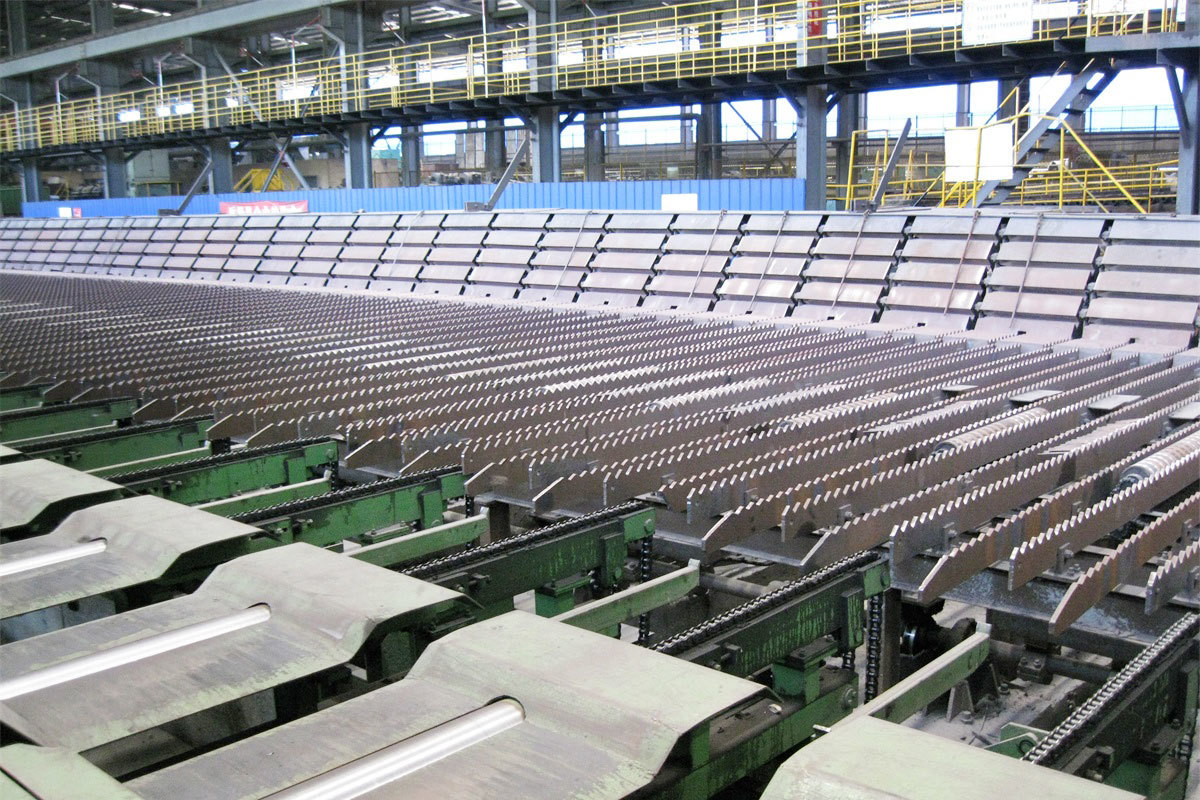

  • Walking rack cooling bed with four running channel

  • 400 tons mechanical product shear

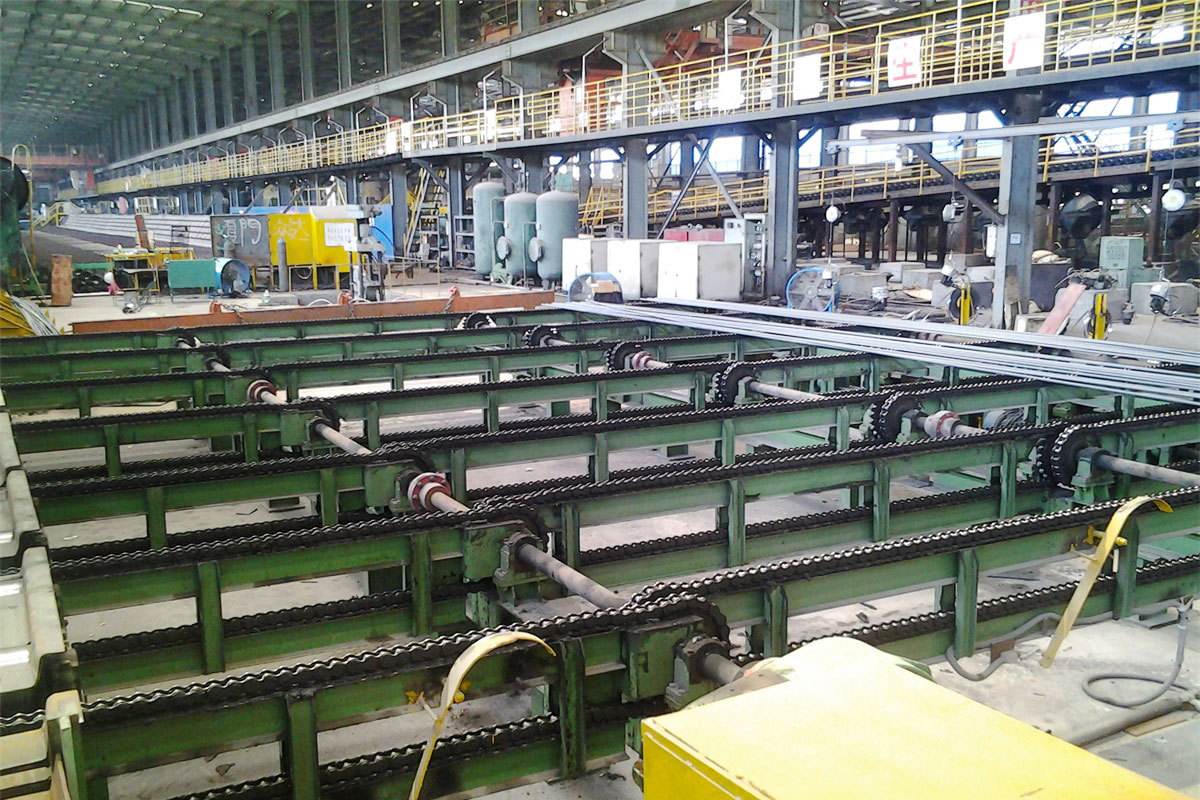

  • Check & transport table of products

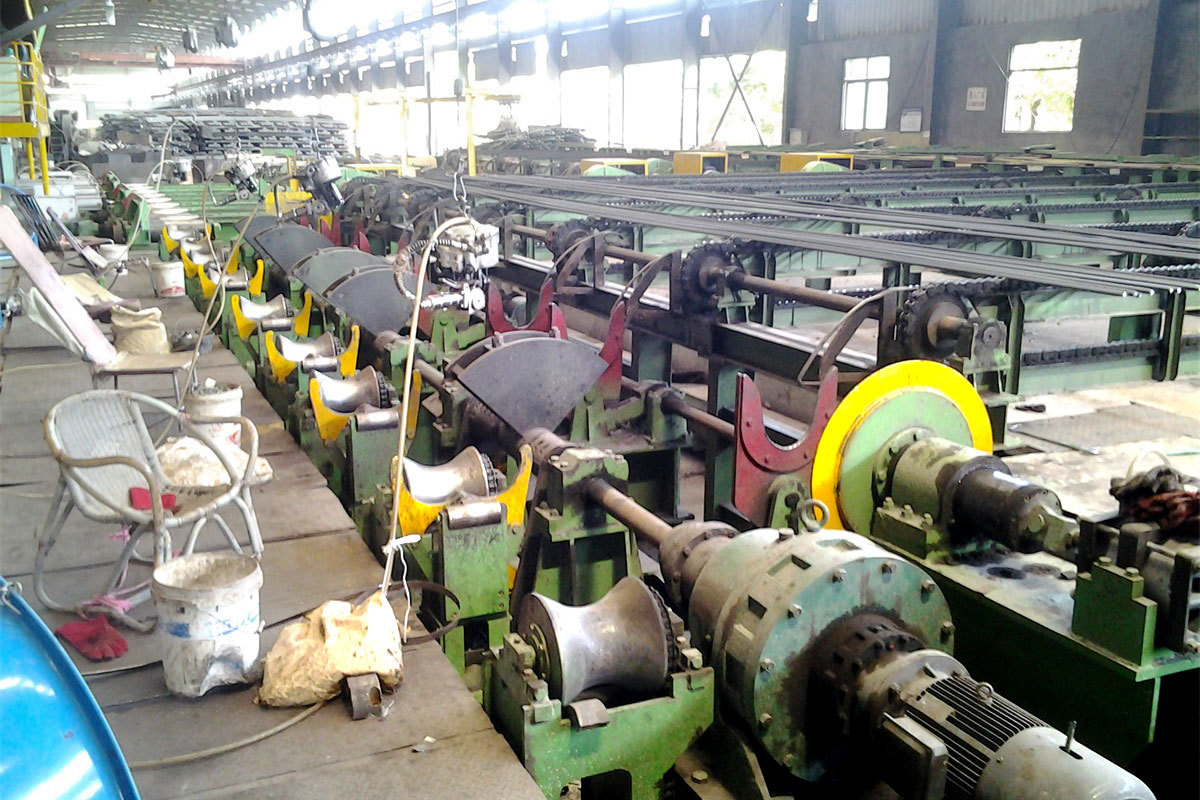

  • Products collecting & tying table

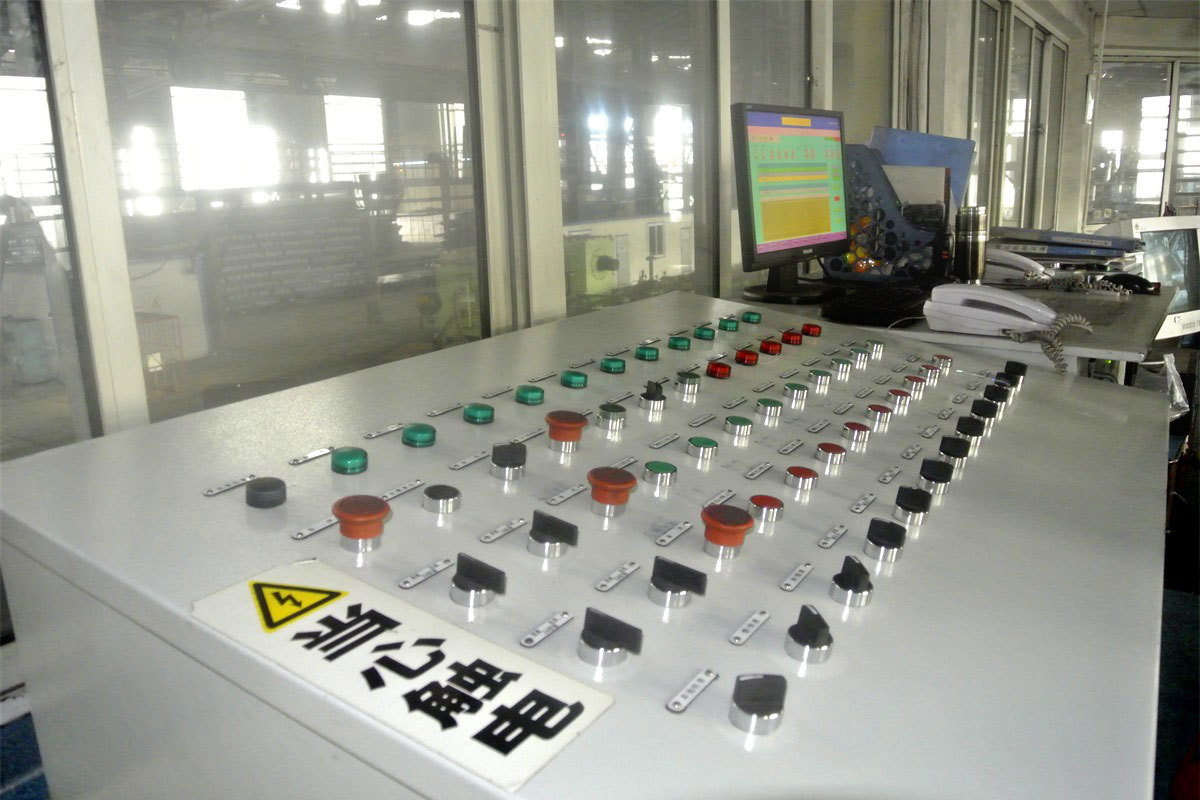

  • Main console
